STULL LIVESTOCK FEEDERS

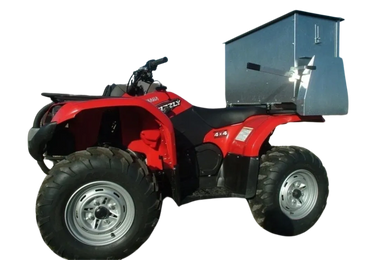

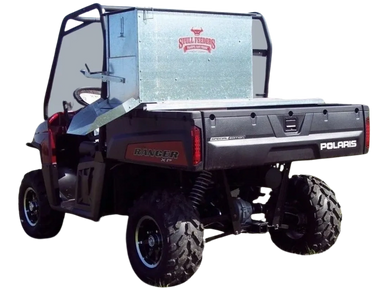

This feeder holds up to 200 lbs. of whole corn and is gravity flow, manual operation.  It is perfect for use with any bunk feeder and will dispense virtually any type of feed/cube. Also a great way to put out bait piles for wildlife. A retractable top allows for easy loading and the long handle allows the driver to easily open the feed door and regulate flow.  The tapering chute folds up when not in use.  Has a "built-in" toolbox.  Two strut mounts allow for mounting to any ATV.  Feeder Dimensions 18w x 36d x 24h (Assembly required)  EMPTY FEEDER WEIGHT IS 87 POUNDS.

This feeder holds up to 200 lbs. of whole corn and is gravity flow, manual operation.  It is perfect for use with any bunk feeder and will dispense virtually any type of feed/cube. Also a great way to put out bait piles for wildlife. A retractable top allows for easy loading and the long handle allows the driver to easily open the feed door and regulate flow.  The tapering chute folds up when not in use.  Has a "built-in" toolbox.

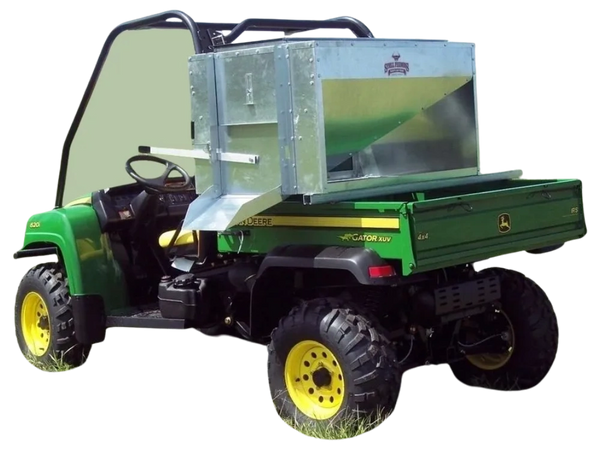

This kit includes the 200-pound stull Feeder and all mounting hardware for the basic UTVs, which include 2-60in struts, all mounting hardware, and instructions for your basic UTV.

Kit will fit MOST UTV models:  Gator, Polaris Ranger, Kubota, Bobcat, Treck, Chuck Wagon, Cub Cadet, Mule and 610 Mule, and other similar type beds.  Feeder Dimensions 18w x 36d x 24h (Assembly required) EMPTY FEEDER WEIGHT IS 87 POUNDS.

This feeder holds up to 200 lbs. of whole corn and is gravity flow, manual operation.  It is perfect for use with any bunk feeder and will dispense virtually any type of feed/cube. Also a great way to put out bait piles for wildlife. A retractable top allows for easy loading and the long handle allows the driver to easily open the feed door and regulate flow.  The tapering chute folds up when not in use.  Has a "built-in" toolbox.

This kit includes the 200 Pound Stull Feeder with Riser Mounting Kit for ALL late model and older model UTVs.  This kit makes for easy removal of the Stull Feeder. Or when mounted to 3/4" plywood, cut to measurement inside of the bed, will allow for quick and easy removal of the feeder.  Plywood is not included.

Feeder Dimensions 18w x 36d x 24h (Assembly required) EMPTY FEEDER WEIGHT IS 87 POUNDS.

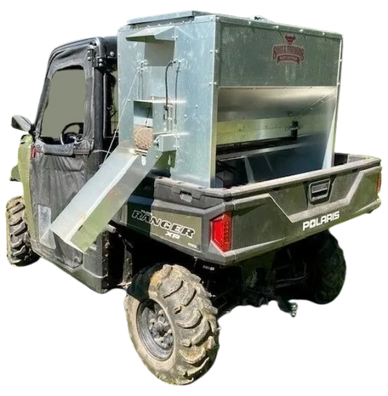

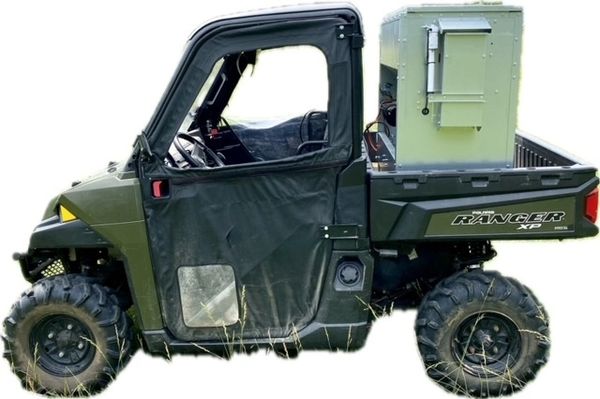

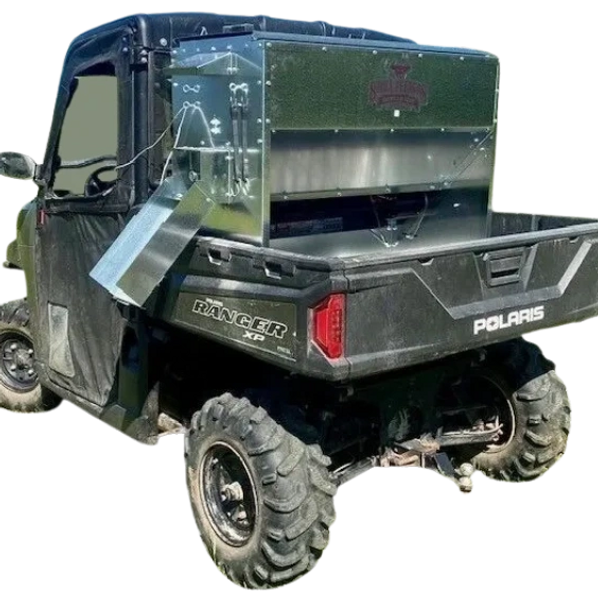

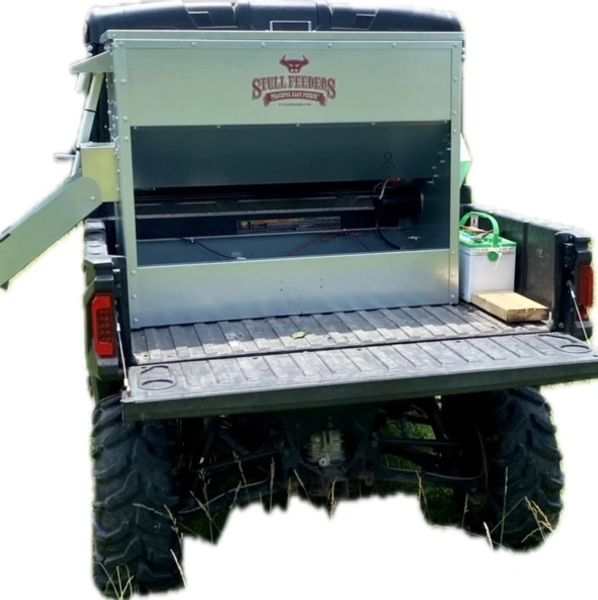

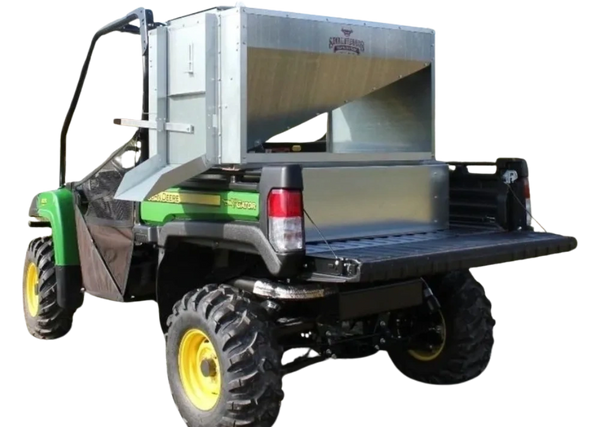

This feeder sits down inside the bed of a UTV.  It is made of 16 GA Galvanized Steel and has a 4-inch Chain Driven auger. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with an "on-demand" style switch for easy control from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types. This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is made to bolt to the bottom of the UTV bed. If mounted on load cells for a scale you must use extra metal between the load cell and the bottom of the feeder for reinforcement. We offer a bracket for this. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included.

**NOTE: SOME UTVs MAY REQUIRE BOLTING TO PLYWOOD OR 2X4 TO HELP CHUTE DROP OVER SIDE PROPERLY**  Feeder Dimensions 30w x 43d x 41h. EMPTY FEEDER WEIGHT IS 220 POUNDS.

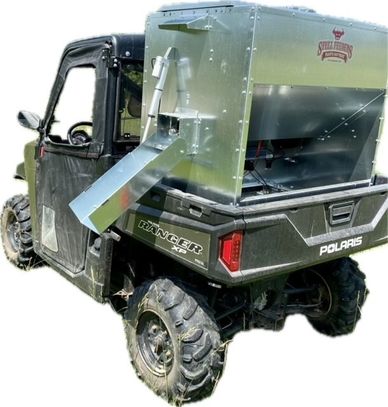

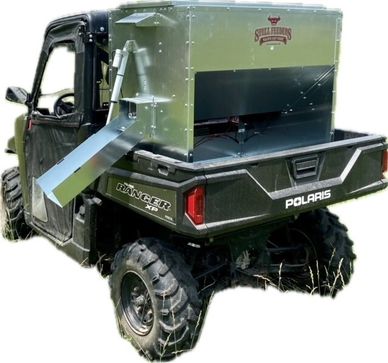

This feeder sits down inside the bed of a UTV.  It is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is an actuator to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch and toggle to control the actuator from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types.  This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is made to bolt to the bottom of the UTV bed. If mounted on load cells for a scale you must use extra metal between the load cell and bottom of the feeder for reinforcement. We offer a bracket for this. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included.  Feeder Dimensions 30d x 43w x 41h. EMPTY FEEDER WEIGHT IS 225 POUNDS.

This feeder comes with a 5,000 lb. Digital Scale Kit is ready to bolt in place and start using. It sits down inside the bed of a UTV.  It is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch for easy control from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types.  This feeder has a capacity to hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is made to bolt to the bottom of the UTV bed. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included.  Feeder Dimensions 33d x 45w x 45h. EMPTY FEEDER WEIGHT IS 250 POUNDS.

This feeder is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch to control the motor from your seat. The motor works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR LOCAL UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types. This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. Feeder Dimensions 30d x 43w x 41h. Trailer Dimensions 31d x 43w x 27h. Overall Dimensions are 31d x 43w x 68h with a 48" tongue and a 2" Ball (Some Assembly May Be Required) EMPTY FEEDER/TRAILER WEIGHT IS 320 POUNDS

This feeder comes with a 5,000 lb. Digital Scale Kit is ready to bolt in place and start using. It sits down inside the bed of a UTV.  It is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is an actuator to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch with a toggle to control the actuator from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types.  This feeder has a capacity to hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is made to bolt to the bottom of the UTV bed. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included.  Feeder Dimensions 33d x 45w x 45h. EMPTY FEEDER WEIGHT IS 245 POUNDS.

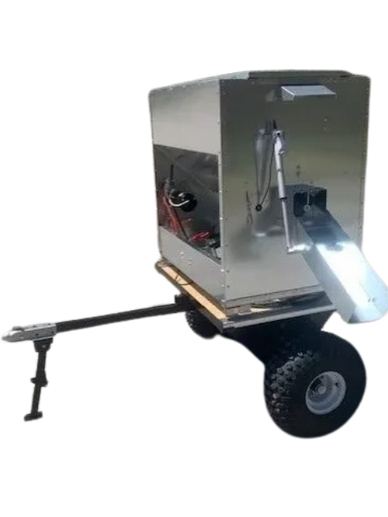

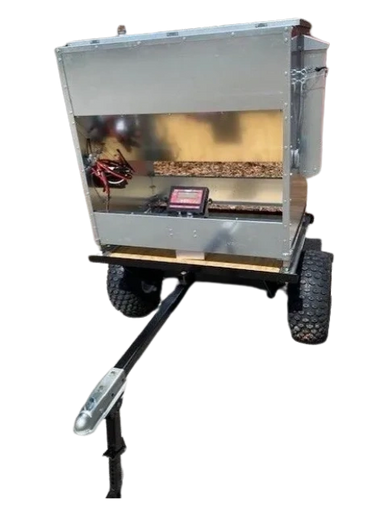

This trailer/feeder comes with a 5,000 lb. Digital Scale Kit. The feeder is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch to control the motor from your seat. The motor works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR LOCAL UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types. This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. Feeder Dimensions 30d x 43w x 41h. Trailer Dimensions 31d x 43w x 27h. Overall Dimensions are 31d x 43w x 68h with a 48" tongue and a 2" Ball (Some Assembly May Be Required) EMPTY FEEDER/TRAILER WEIGHT IS 320 POUNDS

This trailer/feeder comes with a 5,000 lb. Digital Scale Kit. The feeder is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is an actuator to control the chute up and down from the cab without getting out. It has a 12-volt motor with a 20ft "on demand" style switch and a toggle to control the motor/actuator from your seat. The motor works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR LOCAL UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types. This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. Feeder Dimensions 30d x 43w x 45h. Trailer Dimensions 31d x 43w x 27h. Overall Dimensions are 31d x 43w x 72h with a 48" tongue and a 2" Ball (Some Assembly May Be Required) EMPTY FEEDER/TRAILER WEIGHT IS 340 POUNDS

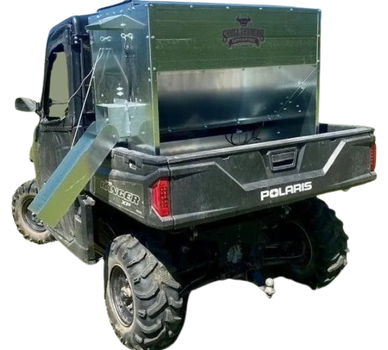

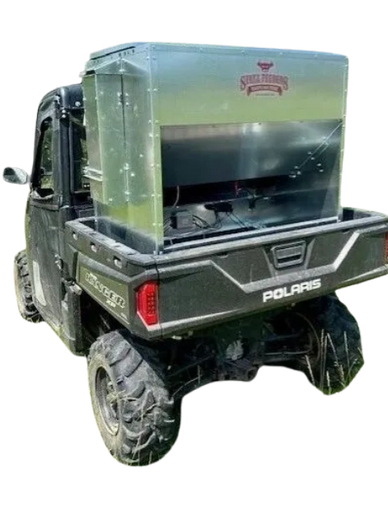

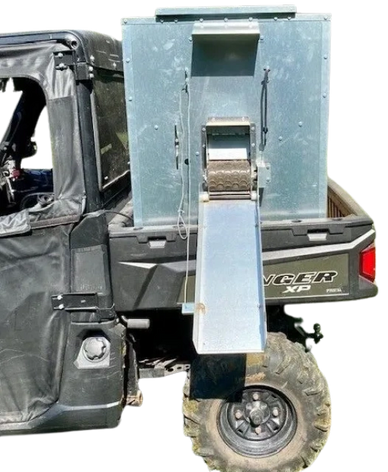

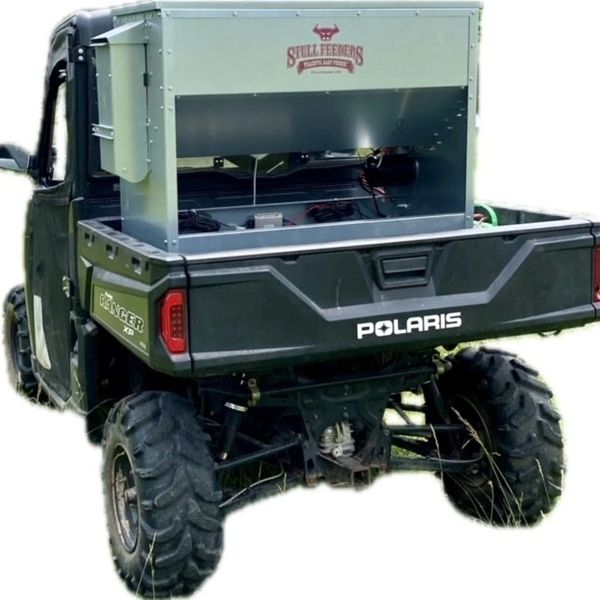

This feeder sits down inside the bed of a UTV.  The box of this feeder is 16 GA galvanized steel with a 12 GA galvanized steel conveyor frame. It has a 6-inch wide conveyor belt to deliver almost any type of feed. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with an "on-demand" style switch for easy control from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 50 AMPS)

There is NO cover inside the hopper over the belt to disturb the flow of feed. This feeder has a capacity to hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is designed for bolting to the bottom of the UTV bed. If mounted on load cells for a scale you must use extra metal between the load cell and the bottom of the feeder for reinforcement. We offer a bracket for this. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included. **NOTE: SOME UTVs MAY REQUIRE BOLTING TO PLYWOOD OR 2X4 TO HELP CHUTE DROP OVER SIDE PROPERLY**  Feeder Dimensions 30w x 44d x 39h. EMPTY FEEDER WEIGHT IS 290 POUNDS.

This feeder comes with a 5,000 lb. Digital Scale Kit is ready to bolt in place and start using. This feeder sits down inside the bed of a UTV.  The box of this feeder is 16 GA galvanized steel with a 12 GA galvanized steel conveyor frame. It has a 6-inch wide conveyor belt to deliver almost any type of feed. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with an "on-demand" style switch for easy control from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 50 AMPS)

There is NO cover inside the hopper over the belt to disturb the flow of feed. This feeder can hold up to 600 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is designed for bolting to the bottom of the UTV bed. If mounted on load cells for a scale you must use extra metal between the load cell and the bottom of the feeder for reinforcement. We offer a bracket for this. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included. **NOTE: SOME UTVs MAY REQUIRE BOLTING TO PLYWOOD OR 2X4 TO HELP CHUTE DROP OVER SIDE PROPERLY**  Feeder Dimensions 30w x 44d x 39h. EMPTY FEEDER WEIGHT IS 290 POUNDS.

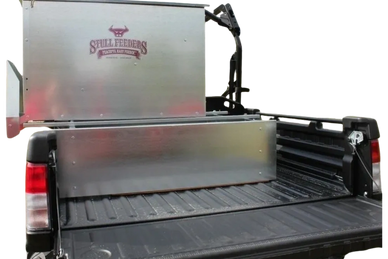

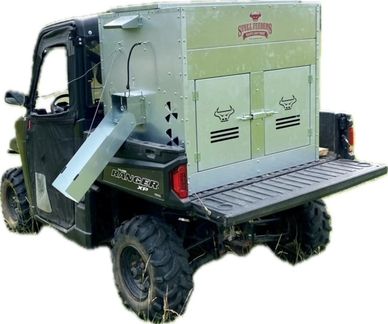

This Dog Box feeder has 2 compartments that are 21"W x21" D and sits down inside the bed of a UTV. It is designed with the idea of being able to carry your dogs with you while you are feeding. There are lots of other uses though including for storage. It is made of 16 GA Galvanized Steel and has a 4-inch chain-driven auger. There is a rope to control the chute up and down from the cab without getting out. It has a 12-volt motor with an "on-demand" style switch for easy control from your seat that works off of a Deep Cycle auxiliary battery (NOT INCLUDED)

(DO NOT ATTACH TO YOUR UTV BATTERY UNTIL YOU TALK TO YOUR UTV MECHANIC. MOTOR DRAWS 30 AMPS)

The auger cover inside of the feeder adjusts for different feed types. This feeder can hold up to 650 pounds of whole corn. It is a great feeder to feed all types of livestock including bait piles for wildlife. This unit is made to bolt to the bottom of the UTV bed. If mounted on load cells for a scale you must use extra metal between the load cell and the bottom of the feeder for reinforcement. We offer a bracket for this. If mounted to 3/4" plywood, and cut to the measurement of a UTV bed, makes for quick and easy removal.  Plywood is not included. Feeder Dimensions 33D x 43W x 41T. EMPTY FEEDER WEIGHT IS 275 lbs.

Our 5,000 lb Scale Kit is an excellent choice for your Cake Feeder, Grain Cart, Feed Wagon, etc.. The kit consists of 4- 2,500lb Single-Ended Shear Beam Load Cells. This means that each corner of your feeder can withstand up to 2,500 lbs of bouncing as you drive through the pasture. Also, the Junction Box and an Indicator are included. Everything comes with Plug-N-Play connectors to make for a "Peaceful Easy Set Up"!

FEATURES
● This weighing kit consists of everything you need to build your scale (except the platform)
● Use your platform of any material or size
● Popularly used for tanks and hoppers to weigh liquids or grains as a stand-alone platform scale
● 100% overload protection on load cells

KIT INCLUDES
● 4-2,500lb NTEP load cells that are "Plug-N-Play" so NO Hard Wiring!
● 1 NTEP bright LCD with a mounting stand so you can see the scale clearly when conditions are bright outside.
● 1 NEMA-rated 4 port junction box with "Plug-N-Play" setup as well so NO Hard Wiring!
● 4 leveling feet
● 20' long stainless steel shielded cable with a quick disconnect to see everything from the cab

● This scale will not auto-zero when you turn it back on after the last feeding. This way you will see what's left in the hopper when turned back on.

The Riser Mounting Kit replaces the top rail mount and mounts (for a 200 or 400-pound Stull Feeder) to the UTV bed floor to support the feeder, which allows for quick and easy removal of the feeder when mounted to a 3/4" plywood cut to bed size.  Plywood is not included.  (Assembly required)

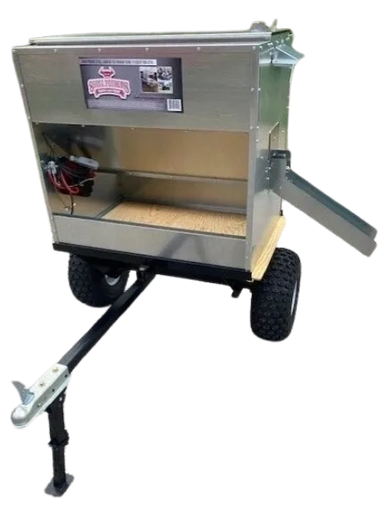

This trailer was made for use with the 600 LB Auger Feeder ONLY, but the trailer has many uses. It can be used to put a sprayer on, a plywood floor (plywood not included), and as a utility trailer used with your ATV.  Trailer Dimensions 43w x 31d x 27h (Some Assembly Required)EMPTY WEIGHT IS 100 LBS

This is a 12-volt motor that is 1/2 HP and draws a max of 32 amps. It requires a minimum of 8 ga. wire to power it from solenoid which comes with purchase. Also, included is a 2-inch V-belt pulley. If you are mounting this to a Stull Feeder purchased before 2015, please specify so we can send a new mounting bracket as well.

Top Rail Mounting Kit ONLY

This switch assembly is ready to attach to your solenoid and get you back to feeding. It is a 10' cord with a switch box on one end and a push button momentary switch for on/off control. On the other end are connectors to hook directly on the solenoid.

The 12V 85A Continuous-Duty SPST Series Grounded Solenoid Relay is designed with plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This model features a flat bracket.

The grounded, three-stud solenoid relay has a 12 V coil and a coil impedance of 17.5 ohms. In addition, this model has a 125 A make/break rating.

• 85 A continuous current rating
• 125 A make/break rating
• 12 V coil and a coil impedance of 17.5 ohms
• Grounded, three-stud solenoid design
• Flat bracket
• Included hex nuts and lock washers are bagged

This actuator has a mounting bracket for the NEW style feeders. It bolts directly in the holes where the Eye bolts are located, and the rope goes through to operate the chute up and down. You will have to drill 2 holes in the chute where the bottom of the actuator bracket holes are located. It comes with a 10' switch cord that will allow you to control the actuator and motor on the same control box.

It is not recommended to mount this to an older style feeder for alignment issue reasons!

This actuator has a mounting bracket for the NEW style feeders. It bolts directly in the holes where the Eye bolts are located, and the rope goes through to operate the chute up and down. You will have to drill 2 holes in the chute where the bottom of the actuator bracket holes are located. It comes with a 10' switch cord on the 600 lb. The feeder will allow you to control the actuator and motor on the same control box.

It is not recommended to mount this to an older style feeder for alignment issue reasons!

This kit will give a template for you to drill holes in the bottom legs of the feeder for your load cells to bolt on for older models and newer models will have holes already to bolt on. After those are installed, you will be able to thread the feet through the channel piece and into the load cell. The channel will allow you to bolt the feeder down to your surface.

This kit will give a template for you to drill holes in the bottom legs of the feeder for your load cells to bolt on for older models and newer models will have holes already to bolt on. After those are installed, you will be able to thread the feet through the channel piece and into the load cell. The channel will allow you to bolt the feeder down to your surface.

This chain drive assembly is a great idea for feeding larger cubes. It will eliminate slippage if any occurs with the belt drive.
