STULL Feeder Accessories

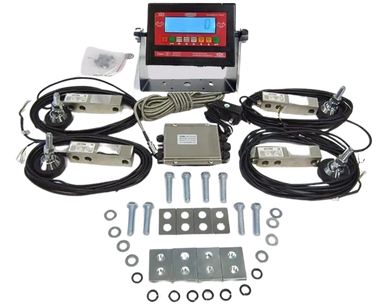

5,000 LB Cake Feeder Scale

Our 5,000 lb Scale Kit is an excellent choice for your Cake Feeder, Grain Cart, Feed Wagon, etc.. The kit consists of 4- 2,500lb Single-Ended Shear Beam Load Cells. This means that each corner of your feeder can withstand up to 2,500 lbs of bouncing as you drive through the pasture. Also, the Junction Box and an Indicator are included. Everything comes with Plug-N-Play connectors to make for a "Peaceful Easy Set Up"!

FEATURES
● This weighing kit consists of everything you need to build your scale (except the platform)
● Use your platform of any material or size
● Popularly used for tanks and hoppers to weigh liquids or grains as a stand-alone platform scale
● 100% overload protection on load cells

KIT INCLUDES
● 4-2,500lb NTEP load cells that are "Plug-N-Play" so NO Hard Wiring!
● 1 NTEP bright LCD with a mounting stand so you can see the scale clearly when conditions are bright outside.
● 1 NEMA-rated 4 port junction box with "Plug-N-Play" setup as well so NO Hard Wiring!
● 4 leveling feet
● 20' long stainless steel shielded cable with a quick disconnect to see everything from the cab

● This scale will not auto-zero when you turn it back on after the last feeding. This way you will see what's left in the hopper when turned back on.

Riser Mounting Kit ONLY

The Riser Mounting Kit replaces the top rail mount and mounts (for a 200 or 400-pound Stull Feeder) to the UTV bed floor to support the feeder, which allows for quick and easy removal of the feeder when mounted to a 3/4" plywood cut to bed size.  Plywood is not included.  (Assembly required)

Universal ATV/UTV Trailer ONLY

This trailer was made for use with the 600 LB Auger Feeder ONLY, but the trailer has many uses. It can be used to put a sprayer on, a plywood floor (plywood not included), and as a utility trailer used with your ATV.  Trailer Dimensions 43w x 31d x 27h (Some Assembly Required)EMPTY WEIGHT IS 100 LBS

300/600 lb 12v Auger Feeder Motor

This is a 12-volt motor that is 1/2 HP and draws a max of 32 amps. It requires a minimum of 8 ga. wire to power it from solenoid which comes with purchase. Also, included is a 2-inch V-belt pulley. If you are mounting this to a Stull Feeder purchased before 2015, please specify so we can send a new mounting bracket as well.

Top Rail Mounting Kit ONLY

Top Rail Mounting Kit ONLY

20' Switch Assembly

This switch assembly is ready to attach to your solenoid and get you back to feeding. It is a 10' cord with a switch box on one end and a push button momentary switch for on/off control. On the other end are connectors to hook directly on the solenoid.

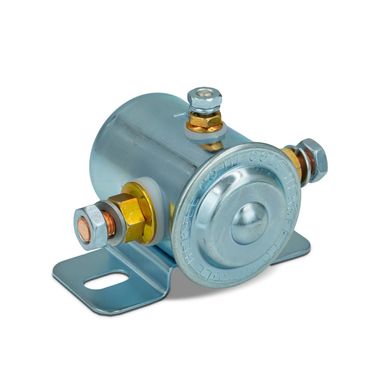

Solenoid

The 12V 85A Continuous-Duty SPST Series Grounded Solenoid Relay is designed with plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This model features a flat bracket.

The grounded, three-stud solenoid relay has a 12 V coil and a coil impedance of 17.5 ohms. In addition, this model has a 125 A make/break rating.

  • 85 A continuous current rating
  • 125 A make/break rating
  • 12 V coil and a coil impedance of 17.5 ohms
  • Grounded, three-stud solenoid design
  • Flat bracket
  • Included hex nuts and lock washers are bagged

Actuator Kit for 300 lb Feeder

This actuator has a mounting bracket for the NEW style feeders. It bolts directly in the holes where the Eye bolts are located, and the rope goes through to operate the chute up and down. You will have to drill 2 holes in the chute where the bottom of the actuator bracket holes are located. It comes with a 10' switch cord that will allow you to control the actuator and motor on the same control box.

It is not recommended to mount this to an older style feeder for alignment issue reasons!

Actuator Kit for 600 lb Feeder

This actuator has a mounting bracket for the NEW style feeders. It bolts directly in the holes where the Eye bolts are located, and the rope goes through to operate the chute up and down. You will have to drill 2 holes in the chute where the bottom of the actuator bracket holes are located. It comes with a 10' switch cord on the 600 lb. The feeder will allow you to control the actuator and motor on the same control box.

It is not recommended to mount this to an older style feeder for alignment issue reasons!

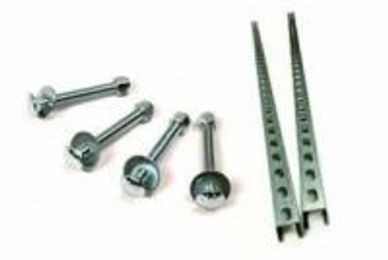

Load Cell Bracket Mounting Channel for 300 lb Feeder

This kit will give a template for you to drill holes in the bottom legs of the feeder for your load cells to bolt on for older models and newer models will have holes already to bolt on. After those are installed, you will be able to thread the feet through the channel piece and into the load cell. The channel will allow you to bolt the feeder down to your surface.

Load Cell Bracket/Mounting Channel for 600 lb. Feeder

This kit will give a template for you to drill holes in the bottom legs of the feeder for your load cells to bolt on for older models and newer models will have holes already to bolt on. After those are installed, you will be able to thread the feet through the channel piece and into the load cell. The channel will allow you to bolt the feeder down to your surface.

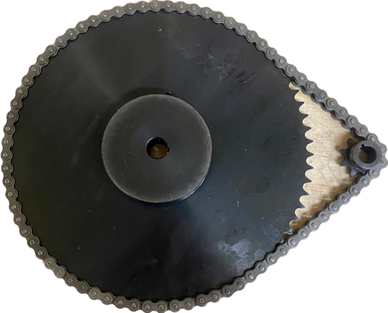

Chain Drive Assembly for 300/600 lb. Feeders (Small/Large Sprocket and Chain)

This chain drive assembly is a great idea for feeding larger cubes. It will eliminate slippage if any occurs with the belt drive.
